Product main product description:

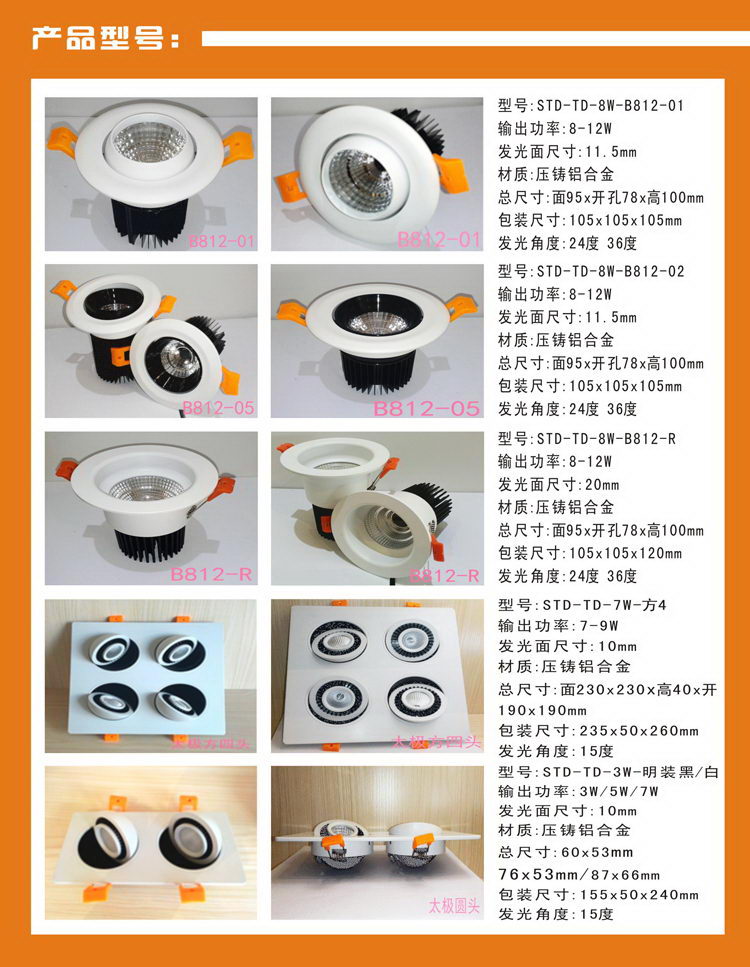

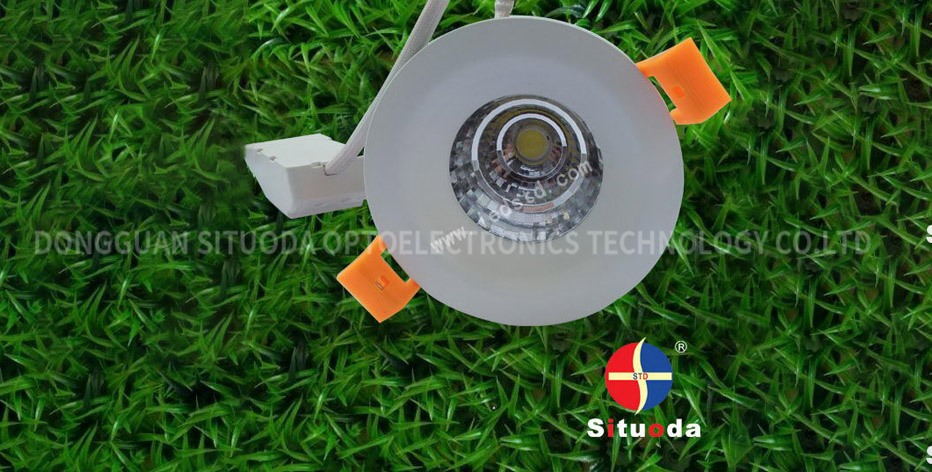

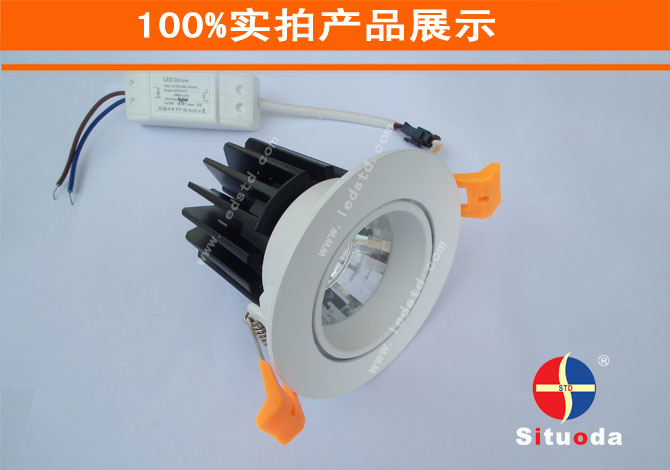

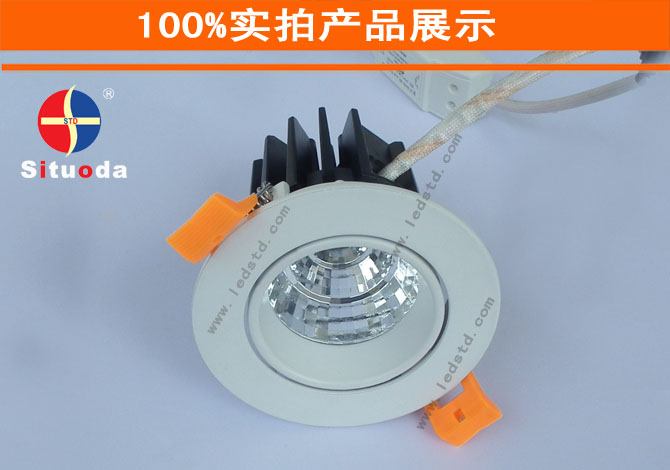

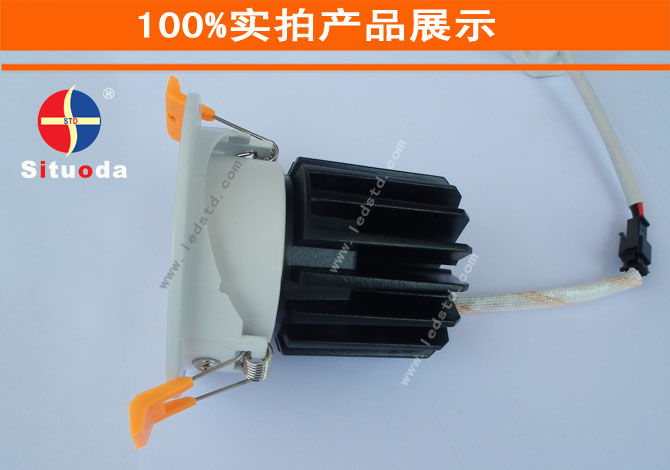

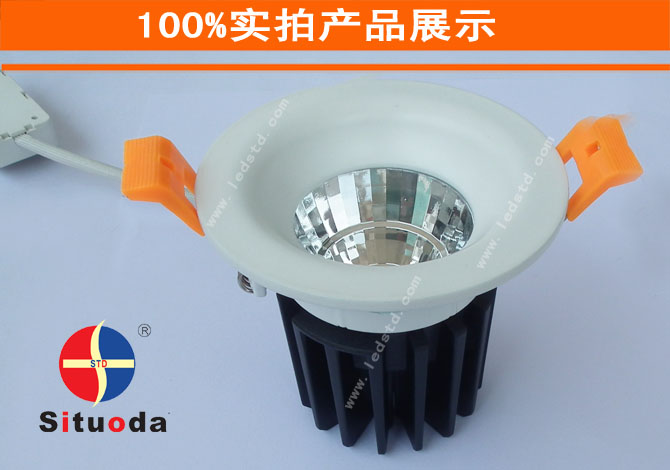

Product model: STD-TD-7W-C-812
Rated power (W): 7W/9W/12W
Input voltage: AC85-265V
Luminous flux: 100LM/W
Luminous angle: 24 degrees, 36 degrees
Light surface size: 20mm
Packing size: 105*105*105mm
Total size: face diameter 95X opening 78Xy height 100mm
Service life (H): 50000H
Color temperature (K): 2700-6500K
Color rendering index: >75
Light source particle 1W, anti-lumen package
Protection level: IP20
Housing material: high thermal conductivity aviation aluminum + acrylic cover

product description:
1. High-efficiency and energy-saving In the case of the same brightness, the LED energy-saving lamp consumes only 1 kWh in 1000 hours, and the ordinary incandescent lamp consumes 1 kWh in 17 hours.
The energy-saving lamp consumes 1 kWh in one hundred hours.
2, the use of ultra-long life LED super energy-saving lamps theoretical life can reach more than 10,000 hours, the life of ordinary incandescent lamps is more than 1000 small
Time.
3, light health light does not contain ultraviolet and infrared, no radiation, no pollution. Ordinary energy-saving lamps and incandescent light lines contain purple
Outside line and infrared.
4. Green environmental protection does not contain harmful elements such as mercury and lead, which is beneficial to recycling and utilization, and does not cause electromagnetic interference.
5, the protection of vision using DC power drive, no stroboscopic, ordinary lights are AC drive, it will inevitably produce stroboscopic long-term eyes
unfavorable.
6, high light efficiency, small heat, 90% of electrical energy is converted into visible light, ordinary incandescent light only 20% of electrical energy is converted into visible light, another
Converting 80% of electrical energy into heat is a huge waste of limited resources.
7. High safety factor requires less voltage and current, less heat, no safety hazards, and can be used in dangerous places such as mines.

Optical characteristics specifications:

1. The illuminance test value is the reading value after 30 minutes after the lighting is set.

The measurement time of luminance is letters after 30min.

2. The illuminance measurement value is normal distribution and the error value is ±10%.

The tolerance of luminance is ±10%.


 Scope of application:



1. Store display, window display, restaurant, restaurant and other interior lighting, exhibition hall, art hall, museum, office, reading room and other local lighting, disco, bar, karaoke and other ambient lighting, jewelry, gold and silver jewelry, Fashion lighting and other places replace ordinary downlights. 2, local lighting: corridors, toilets, garages, parking lots, lighting used, security lights used in factories, residential areas, anti-theft lights, night lights, lights, night lights, no night lights. Installation instructions:
 1. Please remove the outer packaging and install it before use.

2. Before use, please confirm whether the product is damaged during transportation. If it is damaged, it cannot be installed and used.

3, do not try to repair their own, only by professional engineers to repair.

4, materials should be kept away from children, prevent children from swallowing product gadgets, and do not let children touch live equipment.

5. Do not look directly at the light-emitting surface of the LED for a long time; do not use the light of the reflected LED to illuminate the eyes of others.

6. Keep away from open flames or hot objects.

7. Exceeding the service period, it needs to be repaired or retired, or scrapped.



Precautions:

1. Always turn off the power before cleaning the fixture.

2. Clean with a dry or drier cloth.

3. Do not use chemical or corrosive things to clean.

4. When leaving the room, please turn off the lights to ensure the life of the LED.

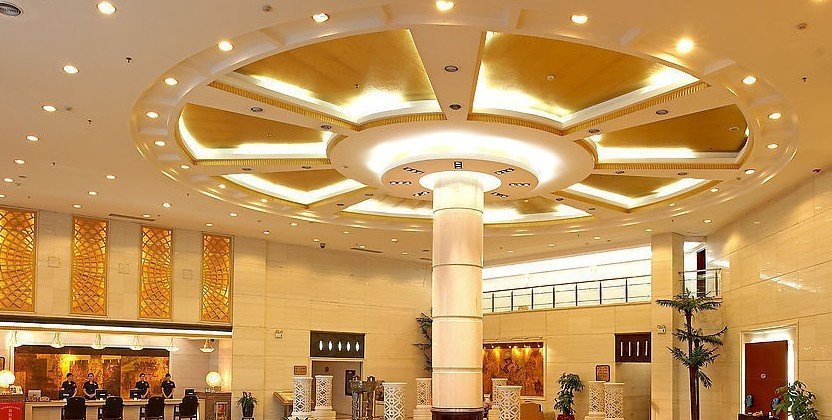

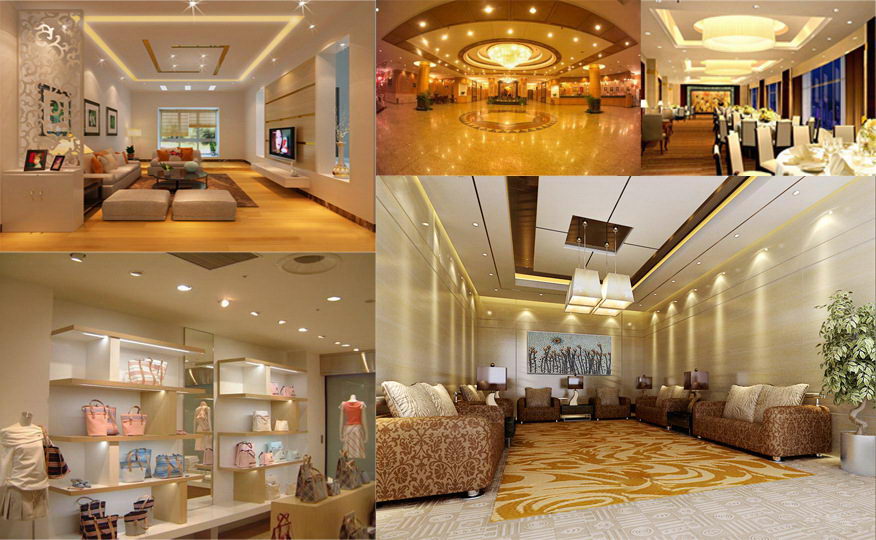

Engineering case:
